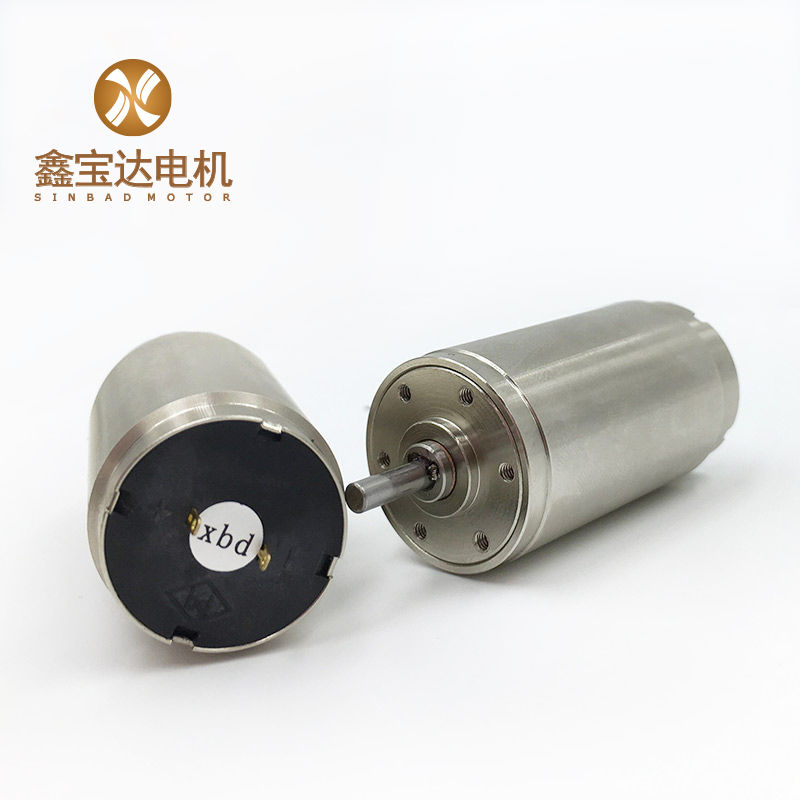

Silver coreless DC motor replace Faulhaber motor XBD-2343

Short Description:

Model No: XBD-2343

It is a compact and powerful 24V DC motor that can run up to 8500 rpm. It features a coreless design, making it lightweight and efficient. Additionally, it is a suitable replacement for the Faulhaber motor.

Send email to us

Product Detail

Product Tags

Product Introduction

The XBD-2343 is a compact and powerful 24V DC motor that can run up to 8500 rpm.

It features a coreless design, making it lightweight and efficient.

Additionally, it is a suitable replacement for the Faulhaber 2343 motor.

Application

Sinbad coreless motor have a wide range of application such as robots, drones, medical equipment, automobiles, information and communications, power tools, beauty equipment, precision instruments and military industry.

Advantage

Advantages of the XBD-2343 Coreless Brushed DC Motor include:

1. Compact Size: The XBD-2343 has a small and compact size, making it suitable for use in smaller devices and tight spaces.
2. High Speed: This micro motor can achieve a high speed of 8500 rpm, allowing it to operate quickly and efficiently.
3. Coreless Design: The coreless design of this DC motor makes it lightweight, efficient, and able to provide smoother operation with less vibration than traditional motors.
4. Faulhaber 2343 Replacement: The XBD-2343 is a suitable replacement for the Faulhaber 2343 motor, offering a comparable performance and capability.

Parameter

Model

Xbd2343

1.Standard Operating Condition

NO.	Item	Specification
1-1	Rated Volt age	24.0 V DC
1-2	Rotation	CW
1-3	Operating Temperature Range	-10~+50℃ Normal Humidity
1-4	Storage Temperature Range	-20~+60℃ Normal Humidity
1-5	Motor Position	Whole Position

2.Performance Of Motors

NO.	Item	Specification	Condition
2-1	Temperature	20±2℃
2-2	Humidity	Normal Humidity
2-3	Motor Situation

3.The Dimension

NO.	Item	Specification	Condition
3-1	Configuration	As specified in outline drawing
3-2	Appearance	No Crack, No rust, No blot	Visual examinations
3-3	Shaft End Play	0.15mm max	Micrometer

4.Performance Of Motor

NO.	Item	Specification	Condition
4-1	No-load Speed	8500±10% RPM	Rated Voltage
4-2	No-load Current	0.08 A Max	Rated Voltage
4-3	Stall Current	3.4A Max	Rated Voltage
4-4	Starting Voltage	1.50 V Min	Rated Load、Shaft Level
4-5	Stall Torque	900 g.cm	Rated Voltage

Samples

Structures

FAQ

Q1. Are you a trading company or manufacturer?

A: Yes. We are a manufacturer specializing in Coreless DC Motor since 2011.

Q2: How do you control the quality?

A: We have QC team comply with TQM, each step is in compliance to the standards.

Q3. What is your MOQ?

A: Normally, MOQ=100pcs. But small batch 3-5 piece is accepted.

Q4. How about Sample order?

A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it will be refund when you place mass order.

Q5. How to order?

A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q6. How long is the Delivery?

A: Delivery time depends on the quantity you order. usually it takes 30~45 calendar days.

Q7. How to pay the money?

A: We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

Q8: How to confirm the payment?

A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
