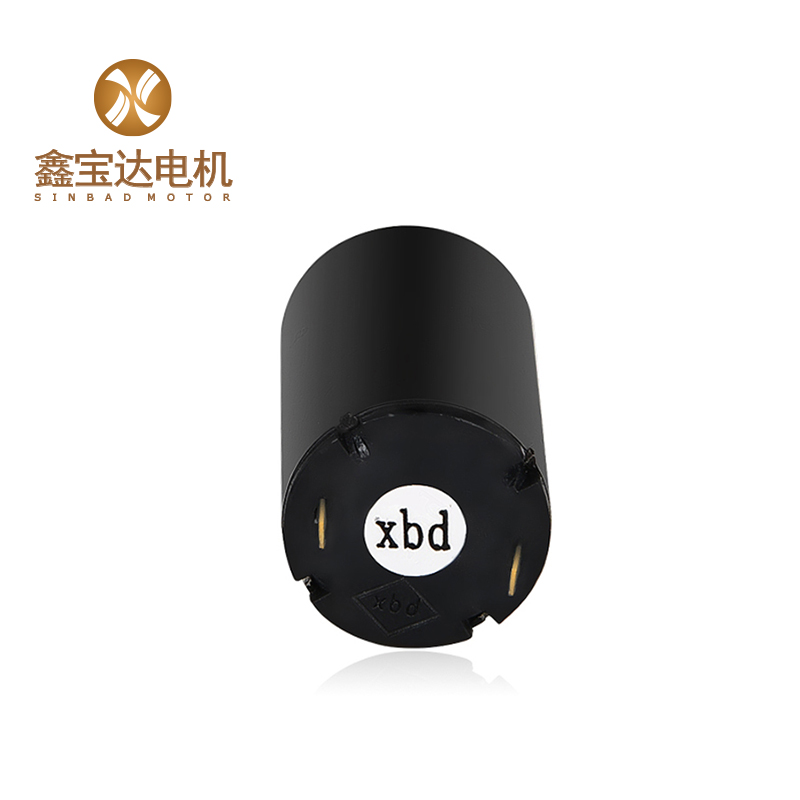

Replace Maxon Faulhaber 16mm Precision DC Hollow Cup Motor XBD-1630
Product Introduction
XBD-1630 Precious Metal Brushed DC Motor is powerful with low speed and high torque, light, precision, reliable control and delicately operate, which can offer continuous high torque and speed for mechanical equipment, not only for the tattoo machine but also can be used for Electric tool.
Lower vibration offering the best user’s experience for customer.
Reliable and stable with long lifetime.
100% complete inspection of the materials after we get from our suppliers and products before ex-factory to ensure the quality for our customer.
The perfect substitute for European motors which can save lots of time and cost for our customer to fit the qualified tattoo machine.
Application
Sinbad coreless motor have a wide range of application such as robots, drones, medical equipment, automobiles, information and communications, power tools, beauty equipment, precision instruments and military industry.
Advantage
Advantages of the XBD-1630 Coreless Brushed DC Motor include:
1. Ultra-compact size for applications where space is limited.
2. Coreless design for smooth and quiet operation
3. High torque output for precise control and performance
4. Low vibration for greater stability and accuracy
Parameter
| Motor model 1630 | |||||
| Brush material precious metal | |||||
| At nominal | |||||
| Nominal voltage | V |
3 |
6 |
12 |
24 |
| Nominal speed | rpm |
9600 |
7760 |
6240 |
6240 |
| Nominal current | A |
1.9 |
0.8 |
0.3 |
0.1 |
| Nominal torque | mNm |
4.2 |
4.4 |
4.2 |
3.6 |
|
Free load |
|||||
| No-load speed | rpm |
12000 |
9700 |
7800 |
7800 |
| No-load current | mA |
95 |
50 |
15 |
10 |
|
At max efficiency |
|||||
| Max efficiency | % |
80.5 |
78.5 |
80.7 |
76.6 |
| Speed | rpm |
10920 |
8730 |
7098 |
6942 |
| Current | A |
0.9 |
0.4 |
0.1 |
0.1 |
| Torque | mNm |
1.9 |
2.2 |
1.9 |
2.0 |
|
At max output power |
|||||
| Max output power | W |
6.6 |
5.6 |
4.3 |
3.7 |
| Speed | rpm |
6000 |
4850 |
3900 |
3900 |
| Current | A |
4.5 |
2.0 |
0.7 |
0.3 |
| Torque | mNm |
10.5 |
11.1 |
10.4 |
9.1 |
|
At stall |
|||||
| Stall current | A |
9.0 |
3.9 |
1.5 |
0.6 |
| Stall torque | mNm |
21.0 |
22.2 |
20.9 |
18.2 |
|
Motor constants |
|||||
| Terminal resistance | Ω |
0.33 |
1.56 |
8.28 |
37.50 |
| Terminal inductance | mH |
0.02 |
0.08 |
0.39 |
1.05 |
| Torque constant | mNm/A |
2.36 |
5.83 |
14.54 |
28.92 |
| Speed constant | rpm/V |
4000.0 |
1616.7 |
650.0 |
325.0 |
| Speed/Torque constant | rpm/mNm |
570.5 |
437.8 |
373.9 |
428.1 |
| Mechanical time constant | ms |
8.1 |
6.2 |
4.7 |
5.4 |
| Rotor inertia | g·cm² |
1.36 |
1.36 |
0.90 |
0.90 |
| Number of pole pairs 1 | |||||
| Number of phase 5 | |||||
| Weight of motor | g | 30 | |||
| Typical noise level | dB | ≤38 | |||
