XBD-1722 high speed custom shaft length ball bearing coreless dc motor 12V for tattoo pen

Short Description:

The XBD-1722 brushed DC motor has secured a significant position in the market for precision devices such as tattoo pens, thanks to its exceptional performance and reliability. The motor employs rare earth magnets, providing a powerful magnetic field and stable output, ensuring precision and evenness during the tattooing process. The low vibration and low noise characteristics of the motor offer artists a quiet and comfortable working environment. Furthermore, the motor’s long lifespan and energy-saving features make it an ideal choice that balances environmental protection with economic benefits.

Send email to us

Product Detail

Product Tags

Product Introduction

The XBD-1722 precious metal brushed DC motor is a high-performance motor that leverages the use of precious metal brushes to ensure excellent efficiency and superior performance. It operates smoothly and quietly, delivering substantial torque and precise control, making it suitable for a broad spectrum of applications. The motor's compact and lightweight design facilitates easy integration into various systems. Thanks to its long operational lifespan, the motor is highly reliable and durable. Moreover, the XBD-1722 motor offers customization options to meet specific requirements, enhancing its versatility and flexibility for any application. Integrated gearbox and encoder options are also available to further tailor motor performance to the needs of diverse industrial applications.

Application

Sinbad coreless motor have a wide range of application such as robots, drones, medical equipment, automobiles, information and communications, power tools, beauty equipment, precision instruments and military industry.

Advantage

The advantages of the XBD-1722 Precious Metal Brushed DC Motor:

1. High efficiency: The motor uses precious metal brushes that provide superior conductivity, ensuring high efficiency and performance.

2. Smooth and quiet operation: The motor operates smoothly and quietly, making it ideal for applications where noise is a concern.

3. High torque output: The motor delivers high torque output, providing precise control and increased power to various systems.

4. Compact and lightweight design: The motor's compact and lightweight design allows for easy integration into various systems.

5. Long operational lifespan: The motor is highly reliable and durable, providing a long operational lifespan.

6. Customizable: The motor can be customized to meet specific application requirements, ensuring greater versatility and flexibility.

7. Gearbox and encoder options available: Integrated gearbox and encoder options are available to further customize motor performance to meet the needs of different industrial applications.

Parameter

Motor model 1722
Brush material precious metal
At nominal
Nominal voltage	V	3	6	12	24
Nominal speed	rpm	8800	10400	10400	10400
Nominal current	A	0.89	0.58	0.37	0.18
Nominal torque	mNm	2.12	2.42	2.95	2.96
Free load
No-load speed	rpm	11000	13000	13000	13000
No-load current	mA	65	30	30	10
At max efficiency
Max efficiency	%	76.7	80.4	75.4	79.6
Speed	rpm	0	11765	11505	11765
Current	A	0.0	0.3	0.2	0.1
Torque	mNm	0.0	1.1	1.7	1.4
At max output power
Max output power	W	3.1	4.1	5.0	5.0
Speed	rpm	5500	6500	6500	6500
Current	A	2.1	1.4	0.9	0.4
Torque	mNm	5.3	6.0	7.4	7.4
At stall
Stall current	A	4.2	2.8	1.7	0.9
Stall torque	mNm	10.6	12.1	14.74	14.8
Motor constants
Terminal resistance	Ω	0.71	2.14	6.94	27.91
Terminal inductance	mH	0.23	0.68	0.23	0.73
Torque constant	mNm/A	2.56	4.36	8.66	17.42
Speed constant	rpm/V	3666.7	2166.7	1083.3	541.7
Speed/Torque constant	rpm/mNm	1037.5	1076.4	882.8	877.7
Mechanical time constant	ms	8.5	9.7	8.3	7.9
Rotor inertia	g·cm²	0.78	0.86	0.90	0.86
Number of pole pairs 1
Number of phase 5
Weight of motor	g	24
Typical noise level	dB	≤38

Samples

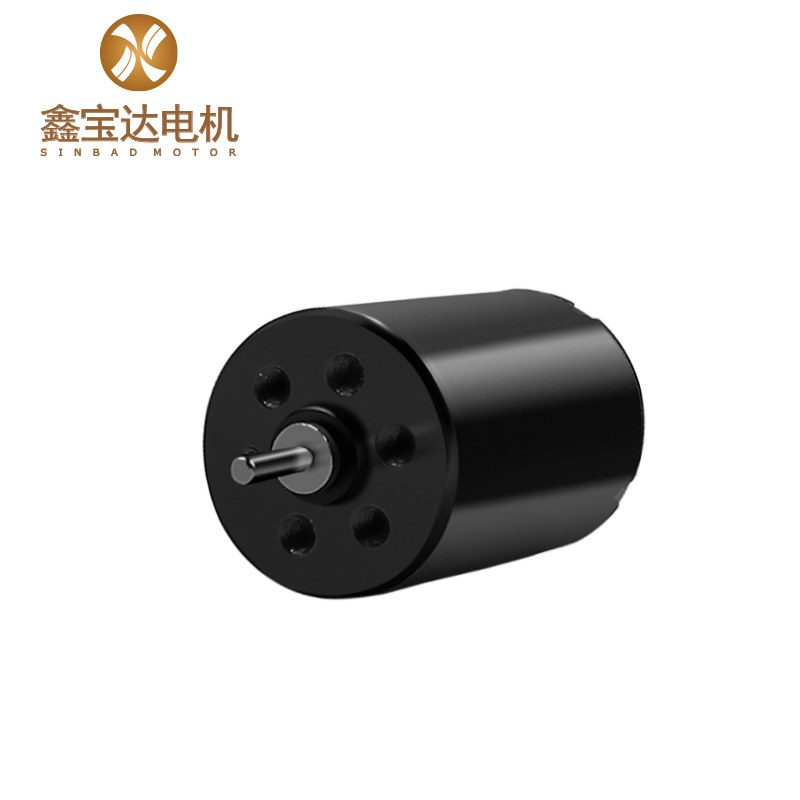

XBD-1722 Precious Metal Brushed DC Motor-01 (7)

XBD-1722 Precious Metal Brushed DC Motor-01 (8)

XBD-1722 Precious Metal Brushed DC Motor-01 (6)

Structures

FAQ

Q1. Are you a trading company or manufacturer?

A: Yes. We are a manufacturer specializing in Coreless DC Motor since 2011.

Q2: How do you control the quality?

A: We have QC team comply with TQM, each step is in compliance to the standards.

Q3. What is your MOQ?

A: Normally, MOQ=100pcs. But small batch 3-5 piece is accepted.

Q4. How about Sample order?

A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it will be refund when you place mass order.

Q5. How to order?

A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q6. How long is the Delivery?

A: Delivery time depends on the quantity you order. usually it takes 15-25 working days.

Q7. How to pay the money?

A: We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

Q8: How to confirm the payment?

A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
